1.Work platform

ZLP800 steel hanging basket, 7.5 meters in length

ZLP800Technical parameters of hanging basket

Model	ZLP800
Rated load	800kg
Lifting speed	8ｍ/min
The length of the hanging basket	1m-7.5mArbitrary splice
The length of the standard	2.5m×3节
Weight of the platform	450kg
Hoist power800A	2.2KW×2只
Hoist power800B	1.8KW×2只
Hoisting type	LTD8.0

ZLP630Steel hanging basket, length is 6 meters

ZLP630Technical parameters of hanging basket

Model	ZLP630
Rated load	630kg
Lifting speed	9.6ｍ/min
The length of the hanging basket	1m-6mArbitrary splice
The length of the standard	2m×3节
Weight of the platform	358kg
Hoist power	1.5KW×2只
Hoisting type	LTD6.3

ZLP800Hot-dip galvanized hanging basket

ZLP800Single-layer aluminum alloy hanging basket


ZLP300Aluminium alloy hanging basket	Limited load and retractable basket
Limited load and retractable basket	ZLP630Steel hanging basket

2.Special platform

ZLP300Hanging basket

ZLP630Type hanging basket

Suitable for North America

Huake double deck large hanging basket assembly site

Bridge maintenance basket, large length up to 32 meters

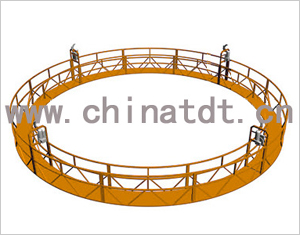

Arc hanging basket (no matter the size of the arc can be adjusted arbitrarily)

ZLP800Type two - layer aluminum alloy hanging basket

Special specification work platform

U-shaped hanging basket

90° Angle combined hanging basket

135 ° Angle combination

120 ° Angle combination


Non-standard basket (European version)	Non-standard hanging basket	90 ° Angle combination	Double combination

Chimney inner wall hanging basket

Chimney outer wall hanging basket
