Huake Machine Products

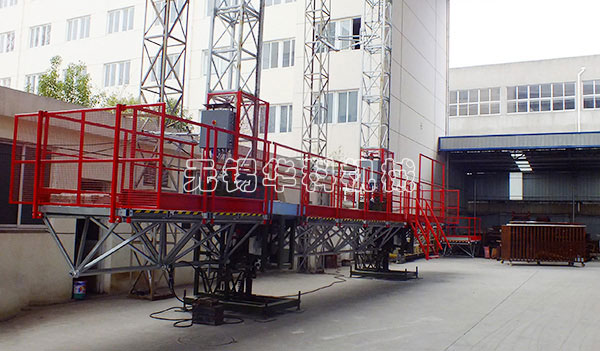

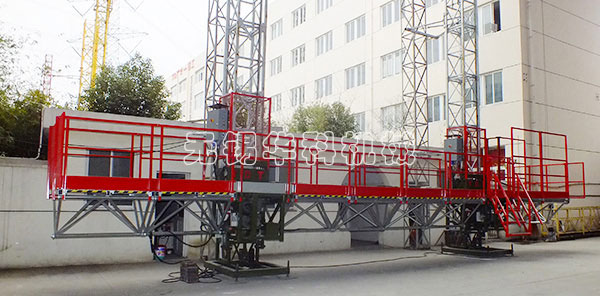

SCP230/9DConstruction lifting platform


Lifting platform technical parameters SCP230/9D
describe Single column Double column
Platform length (m) 3.0-10.3 8.6-23.6
Platform width (m) 1.5-2.5 1.5-2.5
Standard pitch (m) ----- 7.3-13.3
Wall spacing (m) 6
Large independent height (m) 15 15
Large installation height (m) 150 150
Standard section type 700X700X1508 700X700X1508
Bearing the number 3 6
Lifting speed (m/min) 6 6
Rated load (kg) 2000 2000
Installation height of wall 1 (m) 3 3
Installation height of the second wall (m) 9 9
Large height of jack (m) 0.6-0.72 0.6-0.72
Distance from the bottom of main engine to the fence (m) 1.95 1.95
Bottom end of main engine to platform pedal height (m) 0.83 0.83
Height of main fence (m) 2 2
Motor number 2 4
Motor rating 2X2.2KW 4X2.2KW
Starting rated current ±60A ±120A
Supply voltage/frequency 380-415V/50HZ;440-460V/60HZ
A fuse 16A 25A
The control voltage 42Vac
