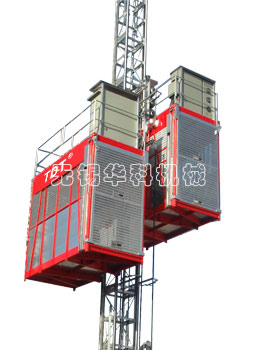

Variable frequency speed regulating construction hoist
|
|
|
Energy saving, starting current less than rated current. |
Adjustable speed, high lifting speed 96m/min. |
Variable frequency control system. |
Start brake balance, low mechanical wear. |
|
|
|
|
Variable frequency speed regulating construction hoist parameters table
|
|
|
|
|
Product category
|
Product model
|
Rated loadkg
|
speed m/min
|
The motor power kw
|
Inverter powerkw
|
The heavy weightkg
|
|
A single cage has no weight
|
SC100G
|
SC100GD
|
1000
|
0～40
|
2×11
|
30
|
0
|
|
SC100GZ
|
1000
|
0～63
|
3×15
|
45
|
0
|
|
SC100GS
|
1000
|
0～96
|
3×22
|
75
|
0
|
|
SC120G
|
SC120GD
|
1200
|
0～40
|
2×11
|
30
|
0
|
|
SC120GZ
|
1200
|
0～63
|
3×15
|
45
|
0
|
|
SC120GS
|
1200
|
0～96
|
3×22
|
90
|
0
|
|
SC200G
|
SC200GD
|
2000
|
0～40
|
3×11
|
37
|
0
|
|
SC200GDS
|
2000
|
0～40
|
3×11
|
37
|
0
|
|
SC200GDN
|
2000
|
0～40
|
2×11
|
37
|
0
|
|
SC200GZ
|
2000
|
0～63
|
3×18.5
|
55
|
0
|
|
SC200GZS
|
2000
|
0～63
|
3×18.5
|
55
|
0
|
|
SC200GN
|
2000
|
0～96
|
3×18.5
|
90
|
0
|
|
SC200GSN
|
2000
|
0～96
|
3×18.5
|
90
|
0
|
|
SC270G
|
SC270GD
|
2700
|
0～40
|
3×18.5
|
55
|
0
|
|
SC270GZSN
|
2700
|
0～63
|
3×18.5
|
90
|
0
|
|
SC270GN
|
2700
|
0～96
|
3×22
|
110
|
0
|
|
SC270GSN
|
2700
|
0～96
|
3×22
|
110
|
0
|
|
Single cage with counterweight
|
SCD200G
|
SCD200GZ
|
2000
|
0～63
|
2×15
|
30
|
2000
|
|
SCD200G
|
2000
|
0～96
|
3×15
|
45
|
2000
|
|
SCD200GS
|
2000
|
0～96
|
2×22
|
45
|
2000
|
|
SCD270G
|
SCD270GZ
|
2700
|
0～63
|
2×18.5
|
37
|
2000
|
|
SCD270G
|
2700
|
0～96
|
3×18.5
|
55
|
2000
|
|
SCD270GS
|
2700
|
0～96
|
3×18.5
|
55
|
2000
|
|
SCD320G
|
SCD320GZ
|
3200
|
0～63
|
3×15
|
45
|
2000
|
|
SCD320G
|
3200
|
0～96
|
3×22
|
75
|
2000
|
|
SCD320GS
|
3200
|
0～96
|
3×22
|
75
|
2000
|
|
There is no weight in two cages
|
SC100/100G
|
SC100/100GD
|
2×1000
|
0～40
|
2×2×11
|
2×30
|
0
|
|
SC100/100GZ
|
2×1000
|
0～63
|
2×3×15
|
2×45
|
0
|
|
SC100/100GS
|
2×1000
|
0～96
|
2×3×22
|
2×75
|
0
|
|
SC120/120G
|
SC120/120GD
|
2×1200
|
0～40
|
2×2×11
|
2×30
|
0
|
|
SC120/120GZ
|
2×1200
|
0～63
|
2×3×15
|
2×45
|
0
|
|
SC120/120GS
|
2×1200
|
0～96
|
2×3×22
|
2×75
|
0
|
|
SC200/200G
|
SC200/200GD
|
2×2000
|
0～40
|
2×3×11
|
2×37
|
0
|
|
SC200/200GDS
|
2×2000
|
0～40
|
2×3×11
|
2×37
|
0
|
|
SC200/200GDN
|
2×2000
|
0～40
|
2×2×11
|
2×37
|
0
|
|
SC200/200GZ
|
2×2000
|
0～63
|
2×3×18.5
|
2×55
|
0
|
|
SC200/200GZS
|
2×2000
|
0～63
|
2×3×18.5
|
2×55
|
0
|
|
SC200/200GN
|
2×2000
|
0～96
|
2×3×18.5
|
2×90
|
0
|
|
SC200/200GSN
|
2×2700
|
0～96
|
2×3×18.5
|
2×90
|
0
|
|
SC270/270G
|
SC270/270GD
|
2×2700
|
0～40
|
2×3×18.5
|
2×55
|
0
|
|
SC270/270GZSN
|
2×2700
|
0～63
|
2×3×18.5
|
2×90
|
0
|
|
SC270/270GN
|
2×2700
|
0～96
|
2×3×22
|
2×110
|
0
|
|
SC270/270GSN
|
2×2700
|
0～96
|
2×3×22
|
2×110
|
0
|
|
Double cage tape counterweight
|
SCD200/200G
|
SCD200/200GZ
|
2×2000
|
0～63
|
2×3×15
|
2×30
|
2×2000
|
|
SCD200/200G
|
2×2000
|
0～96
|
2×3×15
|
2×45
|
2×2000
|
|
SCD200/200GS
|
2×2000
|
0～96
|
2×3×22
|
2×45
|
2×2000
|
|
SCD270/270G
|
SCD270/270GZ
|
2×2700
|
0～63
|
2×2×18.5
|
2×37
|
2×2000
|
|
SCD270/270G
|
2×2700
|
0～96
|
2×3×18.5
|
2×55
|
2×2000
|
|
SCD270/270GS
|
2×2700
|
0～96
|
2×3×18.5
|
2×55
|
2×2000
|
|
SCD320/320G
|
SCD320/320GZ
|
2×3200
|
0～63
|
2×3×15
|
2×45
|
2×2000
|
|
SCD320/320G
|
2×3200
|
0～96
|
2×3×22
|
2×75
|
2×2000
|
|
SCD320/320GS
|
2×3200
|
0～96
|
2×3×22
|
2×75
|
2×2000
|
note：
1. Recommended size of hanging cage (L*W*H) (m): 2.5*1.3*2.5; 3 * 1.3 * 2.5. 3.2 * 1.5 * 2.5; 3.6 * 1.5 * 2.5; 3.8 * 1.5 * 2.5; 4 * 1.5 * 2.5. 4.2*1.5*2.5 hanging cage size can also be made according to customer needs.
2. The model with "GS" is a high-speed construction elevator for the reducer of SEW motor.
3. Construction elevator with "N" in the model for special configuration.
|
